Blue Sea M Series Battery Switch 300 Amp With On-Off Key
Blue Sea M Series Battery Switch
Ā
300 Ampere continuous rating for outboards and small gasoline or diesel engines.
ā¾ Tin-plated copper studs for maximum conductivity and corrosion resistance
ā¾ Studs accept 3ā8" (M10) ring terminals
ā¾ One-piece terminal stud design never loosens over time
ā¾ 7ā8" (22.22mm) stud length accepts multiple cable terminals
ā¾ Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction

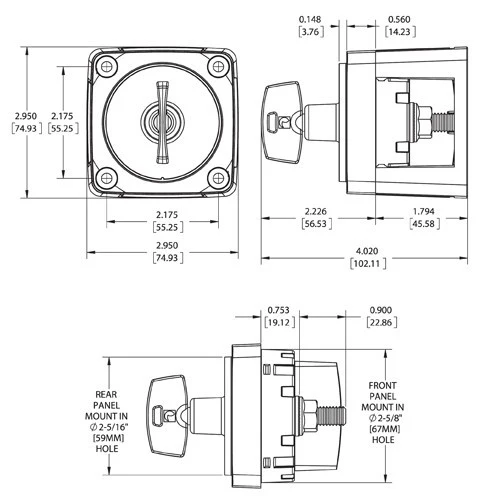

ā¾ Case design allows surface, rear, or front panel mounting options
Regulatory
ā¾ CE marked, ISO 8846
ā¾ UL Listed - UL 1107 electric power switches
ā¾ Meets ABYC requirements
ā¾ Meets UL1500 and SAE J1171 external ignition protection requirements
ā¾ IP66 protects against powerful water jets
SpecificationsĀ
Cranking Rating: 10 sec. 1500 AMPS
Intermittent Rating: 5 min. 500 AMPS
Continuous Rating: 300 AMPS
Voltage Maximum Operating: 48 V
Terminal Stud Size: 3/8" 16 (M10)
Terminal Stud Torque: 120 in-lbsĀ
Mounting Holes: Accept #10 screw
Cable Size to Meet Ratings: 4/0 AWG (95mm2)
Cable Clearance 1.12" (28.4mm)
Original: $51.79
-65%$51.79
$18.13More Images
Blue Sea M Series Battery Switch 300 Amp With On-Off Key
Blue Sea M Series Battery Switch
Ā
300 Ampere continuous rating for outboards and small gasoline or diesel engines.
ā¾ Tin-plated copper studs for maximum conductivity and corrosion resistance
ā¾ Studs accept 3ā8" (M10) ring terminals
ā¾ One-piece terminal stud design never loosens over time
ā¾ 7ā8" (22.22mm) stud length accepts multiple cable terminals
ā¾ Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction
ā¾ Case design allows surface, rear, or front panel mounting options
Regulatory
ā¾ CE marked, ISO 8846
ā¾ UL Listed - UL 1107 electric power switches
ā¾ Meets ABYC requirements
ā¾ Meets UL1500 and SAE J1171 external ignition protection requirements
ā¾ IP66 protects against powerful water jets
SpecificationsĀ
Cranking Rating: 10 sec. 1500 AMPS
Intermittent Rating: 5 min. 500 AMPS
Continuous Rating: 300 AMPS
Voltage Maximum Operating: 48 V
Terminal Stud Size: 3/8" 16 (M10)
Terminal Stud Torque: 120 in-lbsĀ
Mounting Holes: Accept #10 screw
Cable Size to Meet Ratings: 4/0 AWG (95mm2)
Cable Clearance 1.12" (28.4mm)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Blue Sea M Series Battery Switch
Ā
300 Ampere continuous rating for outboards and small gasoline or diesel engines.
ā¾ Tin-plated copper studs for maximum conductivity and corrosion resistance
ā¾ Studs accept 3ā8" (M10) ring terminals
ā¾ One-piece terminal stud design never loosens over time
ā¾ 7ā8" (22.22mm) stud length accepts multiple cable terminals
ā¾ Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction
ā¾ Case design allows surface, rear, or front panel mounting options
Regulatory
ā¾ CE marked, ISO 8846
ā¾ UL Listed - UL 1107 electric power switches
ā¾ Meets ABYC requirements
ā¾ Meets UL1500 and SAE J1171 external ignition protection requirements
ā¾ IP66 protects against powerful water jets
SpecificationsĀ
Cranking Rating: 10 sec. 1500 AMPS
Intermittent Rating: 5 min. 500 AMPS
Continuous Rating: 300 AMPS
Voltage Maximum Operating: 48 V
Terminal Stud Size: 3/8" 16 (M10)
Terminal Stud Torque: 120 in-lbsĀ
Mounting Holes: Accept #10 screw
Cable Size to Meet Ratings: 4/0 AWG (95mm2)
Cable Clearance 1.12" (28.4mm)
