Stainless Steel Fork and Fork Rigging Screw
HomeStore

Stainless Steel Fork and Fork Rigging Screw

Stainless Steel Fork and Fork Rigging Screw

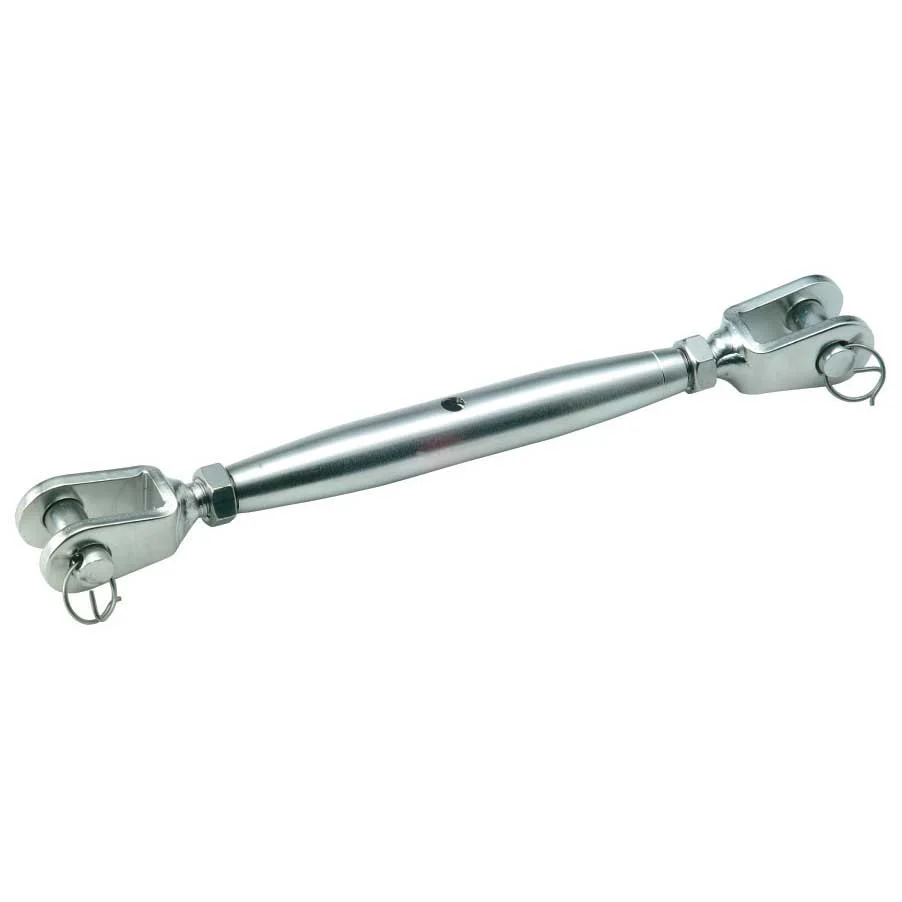

A closed body rigging screw or also known as turnbuckle, tensioner or bottle screw, made of marine grade stainless steel with fork and clevis pin at each end. Polished to a mirror finish, these turnbuckles are the perfect choice for a wide range of marine applications or in other high corrosive environments.

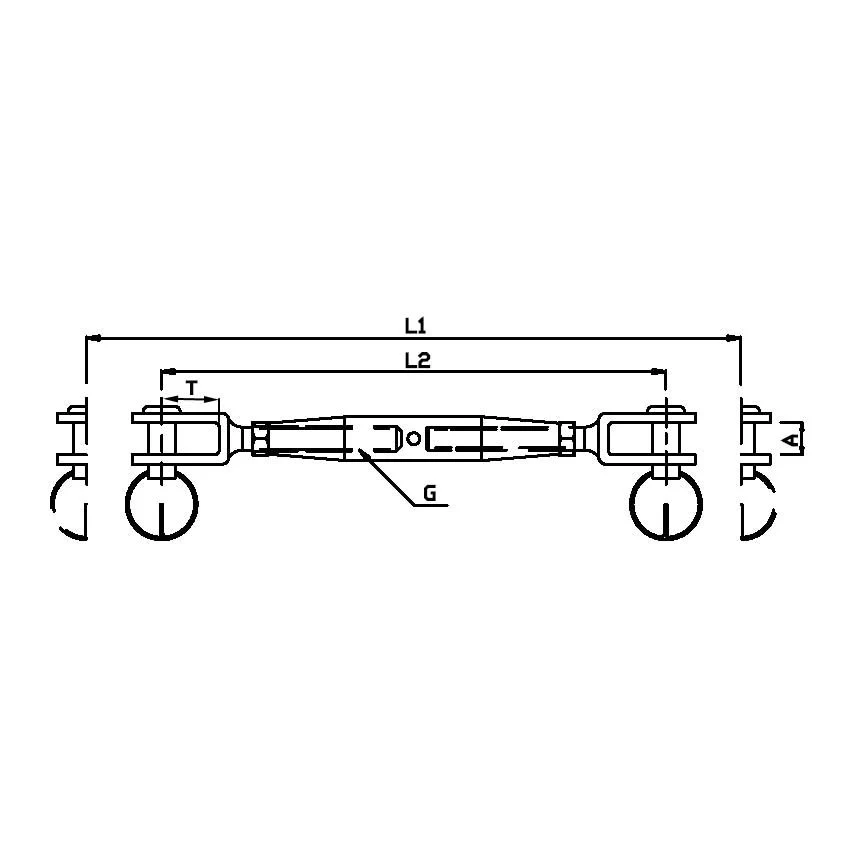

Part No. Thread Pin Dia.(mm) A(mm) L1(mm) L2(mm) T(mm) Break Load(Kg.)
BW-120005 M5 5.0 7.5 180 126 12 800
ED-120006 M6 5.0 7.5 200 138 12 1000
ED-120008 M8 6.0 9.5 234 158 13 1600
ED-120010 M10 8.0 11 272 188 15 3200
ED-120012 M12 12.0 14 350 244 25 5100
Select Hooks-Shackle Size
From $11.28

Original: $32.23

-65%
Stainless Steel Fork and Fork Rigging Screw—

$32.23

$11.28

More Images

Stainless Steel Fork and Fork Rigging Screw - Image 2
Stainless Steel Fork and Fork Rigging Screw - Image 3
Stainless Steel Fork and Fork Rigging Screw - Image 4
Stainless Steel Fork and Fork Rigging Screw - Image 5
Stainless Steel Fork and Fork Rigging Screw - Image 6
Stainless Steel Fork and Fork Rigging Screw - Image 7
Stainless Steel Fork and Fork Rigging Screw - Image 8

Stainless Steel Fork and Fork Rigging Screw

A closed body rigging screw or also known as turnbuckle, tensioner or bottle screw, made of marine grade stainless steel with fork and clevis pin at each end. Polished to a mirror finish, these turnbuckles are the perfect choice for a wide range of marine applications or in other high corrosive environments.

Part No. Thread Pin Dia.(mm) A(mm) L1(mm) L2(mm) T(mm) Break Load(Kg.)
BW-120005 M5 5.0 7.5 180 126 12 800
ED-120006 M6 5.0 7.5 200 138 12 1000
ED-120008 M8 6.0 9.5 234 158 13 1600
ED-120010 M10 8.0 11 272 188 15 3200
ED-120012 M12 12.0 14 350 244 25 5100

Product Information

Shipping & Returns

Description

A closed body rigging screw or also known as turnbuckle, tensioner or bottle screw, made of marine grade stainless steel with fork and clevis pin at each end. Polished to a mirror finish, these turnbuckles are the perfect choice for a wide range of marine applications or in other high corrosive environments.

Part No. Thread Pin Dia.(mm) A(mm) L1(mm) L2(mm) T(mm) Break Load(Kg.)
BW-120005 M5 5.0 7.5 180 126 12 800
ED-120006 M6 5.0 7.5 200 138 12 1000
ED-120008 M8 6.0 9.5 234 158 13 1600
ED-120010 M10 8.0 11 272 188 15 3200
ED-120012 M12 12.0 14 350 244 25 5100
